Which Anti-Ship Missile Should be Selected for the Type 26?

Lockheed Martin LRASM
158
54%
Kongsberg NSM
65
22%
Boeing Harpoon Next Gen
43
15%
MBDA Exocet Blk III
19
6%
None (stick to guided ammo and FASGW from Helicopters)
8
3%

Total votes: 293

SD67
Member
Posts: 341
Joined: 23 Jul 2019, 09:49
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SD67 »

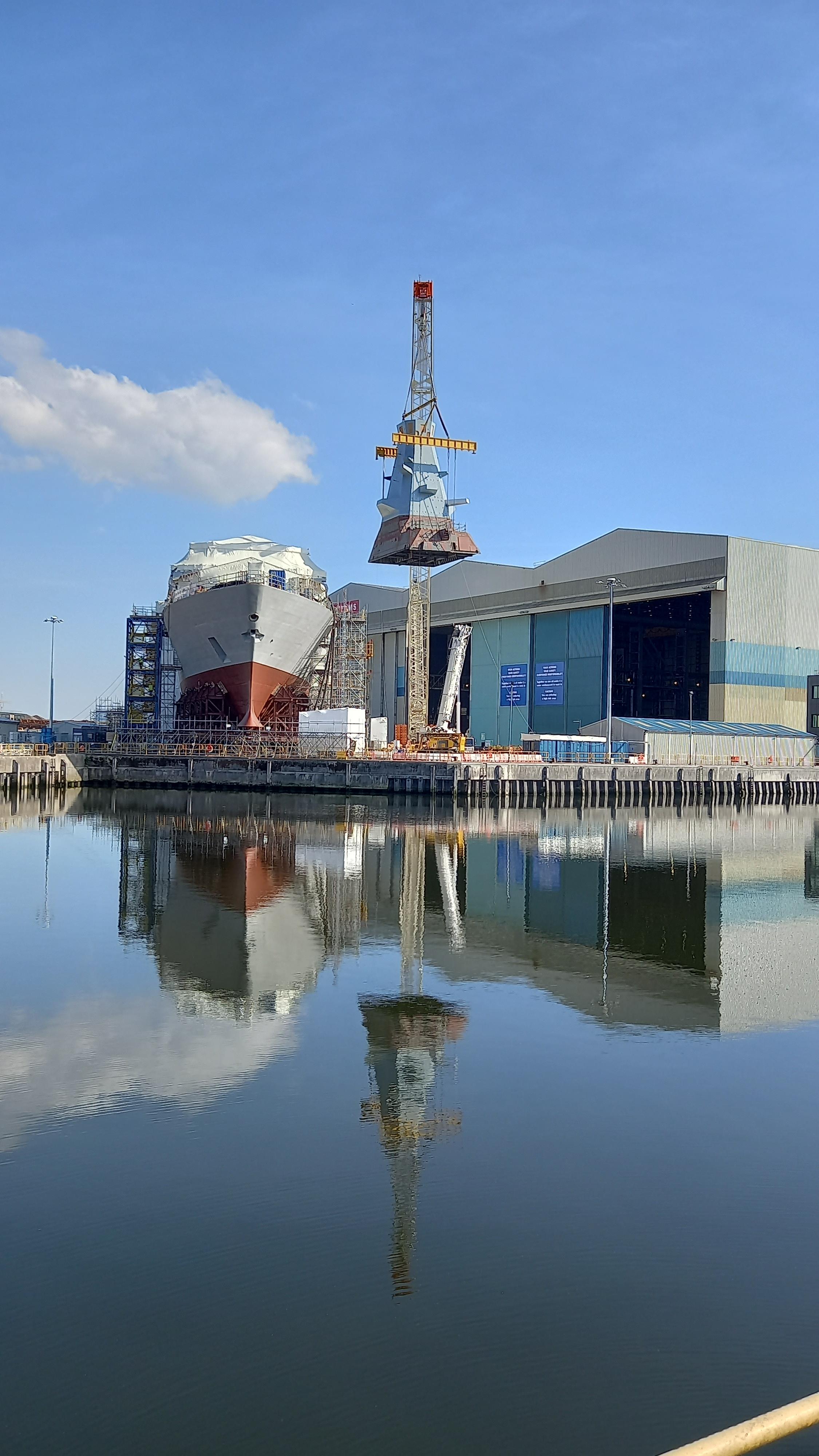

That picture sums up what’s wrong with the Clyde - half million pound waterfront apartments within five hundred meters of a shipyard. We had this in Australia it was called Williamstown, the aussies were sensible enough to close it down and build greenfield

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »

And that was how Liverpool lost its UNESCO status...

NickC
Member
Posts: 971
Joined: 01 Sep 2017, 14:20
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by NickC »

bobp wrote:Another view of HMS Glasgow............

Would note that this is not new, Iver Huitfeldt class design uses shock protected "islands" able to absorb impacts for mounting its sensitive electronic kit and presumably same used on the T31.

Enigmatically
Member
Posts: 297
Joined: 04 May 2015, 19:00

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Enigmatically »

Lets face it, new/novel/innovative features probably aren't going to make it into a press release

Timmymagic
Donator
Posts: 2300
Joined: 07 May 2015, 23:57
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Timmymagic »

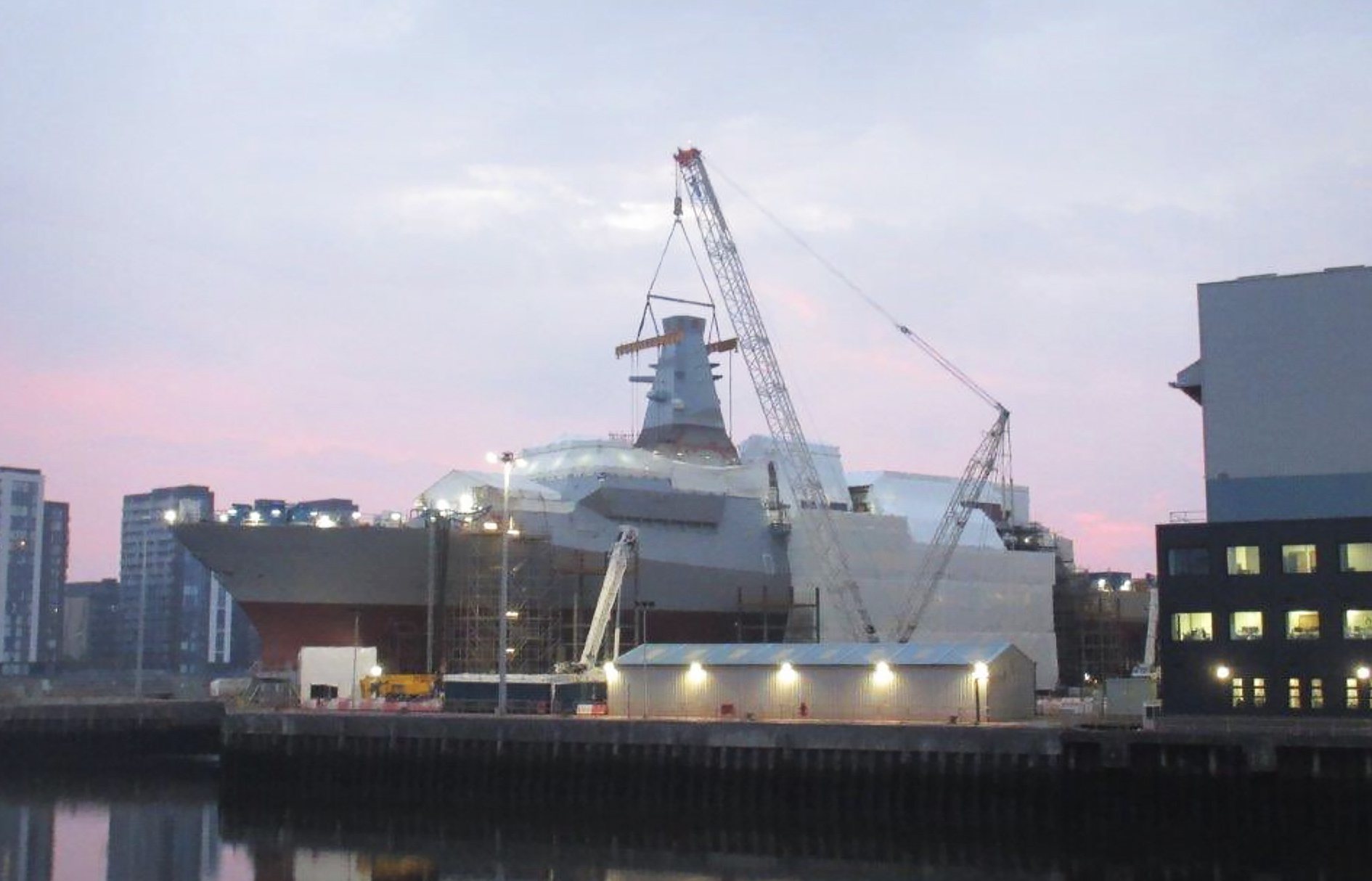

HMS Glasgow mast craned on...


Ron5
Donator
Posts: 6315
Joined: 05 May 2015, 21:42
United States of America

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Ron5 »

Well done Bob!!!!

JohnM
Donator
Posts: 90
Joined: 15 Apr 2020, 19:39
United States of America

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by JohnM »

Bob’s one strong bloke…

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »

Enlarged/embiggened

Jdam
Member
Posts: 482
Joined: 09 May 2015, 22:26
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Jdam »

Always good to see progress.

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »

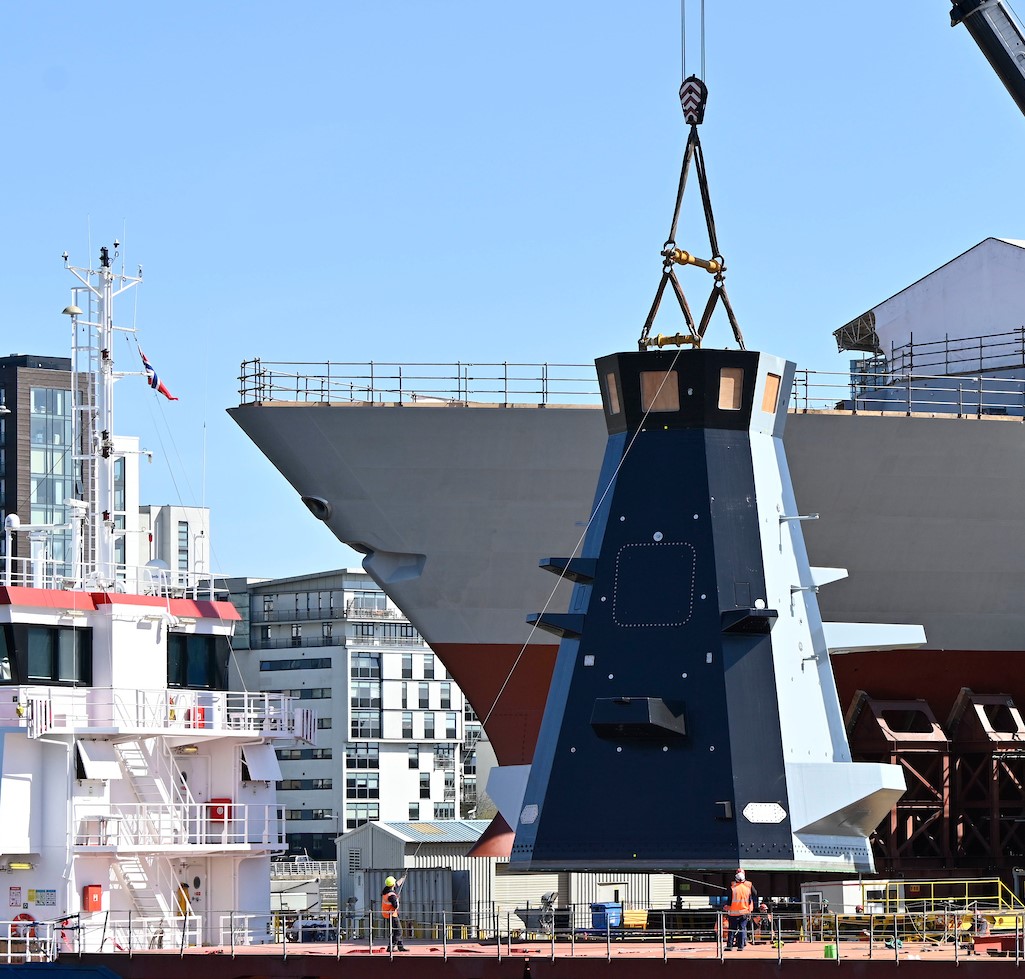

Mast made in Norway by Umoe Mandal. And no, it definitely doesn't look like a Dalek. :mrgreen:

(BAE Systems Maritime)

(BAE)

(BAE)

(BAE)


(Paul Sweeney MP)

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »

The three Type 26 frigates currently under construction have been issued with pennant numbers.

1. HMS Glasgow (F88) - F88 was previously used by T22 HMS Broadsword between 1979-1995 (sold to Brazil as Greenhalgh, decommissioned 10th August 2021)
The previous HMS Glasgow, a T42 destroyer, used the D88 pennant.

2. HMS Cardiff (F89) - F89 was previously used by T22 HMS Battleaxe between 1980-1996 (sold to Brazil as Rademaker)
3. HMS Belfast (F90) - F90 was previously used by T22 HMS Brilliant between 1981-1996 (sold to Brazil as Dodsworth, scrapped 2012)

Source: https://en.wikipedia.org/wiki/Type_26_frigate

The youngest of the T23 (HMS St Albans) was issued with F83.

GarethDavies1
Member
Posts: 25
Joined: 26 May 2021, 11:45
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by GarethDavies1 »

Is the mast made of plywood?

GarethDavies1
Member
Posts: 25
Joined: 26 May 2021, 11:45
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by GarethDavies1 »

Is the mast made of plywood?

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »

Umoe Mandal's (Norwegian mast maker) website says the T26 mast is a composite material.
https://www.um.no/critical-components-f ... oyal-navy/

Ron5
Donator
Posts: 6315
Joined: 05 May 2015, 21:42
United States of America

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Ron5 »

Shame they can't afford to put a Sampson on top rather than Artisan :(

seaspear
Senior Member
Posts: 1750
Joined: 30 Apr 2015, 20:16
Australia

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by seaspear »

Shame they cant afford C.E.C

abc123
Senior Member
Posts: 2786
Joined: 10 May 2015, 18:15

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by abc123 »

seaspear wrote:Shame they cant afford C.E.C
I thought that the RN doesn't really believe in that?
Fortune favors brave sir, said Carrot cheerfully.
What's her position about heavily armed, well prepared and overmanned armies?
Oh, noone's ever heard of Fortune favoring them, sir.
According to General Tacticus, it's because they favor themselves…

NickC
Member
Posts: 971
Joined: 01 Sep 2017, 14:20
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by NickC »

Thanks to SKB, new info to me.
GarethDavies1 wrote:Is the mast made of plywood?
Umoe Mandel all-composite material structures "composite sandwich materials in a variety of Fibre-reinforced polymer composites (FRP), such as resins (polyesters, vinyl ester, epoxy, phenolic), fibers (glass, aramid, carbon), roving (uni- and multi-axial fabrics, woven roving, etc.) with core materials of PVC and PMI foam, balsa and honeycombs."

Full details
From <https://www.um.no/technology-engineerin ... materials/>

PS Would note USN first two Zumwalts 15/16,000t destroyers used a composite 1,000t deck house with balsa core material to reduce top weight presumably due to its tumblehome hull design and stability concerns, due to costs they deleted its SPY-4 VSR with its flat panel arrays which reduced weight in deck house and on third ship used a steel deck house as less expensive.

seaspear
Senior Member
Posts: 1750
Joined: 30 Apr 2015, 20:16
Australia

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by seaspear »

abc123 wrote:
seaspear wrote:Shame they cant afford C.E.C
I thought that the RN doesn't really believe in that?
This is what c.e.c is about it provides information from dispersed sensors that can be collated carrier for instance the carrier escorts that are situated further from the carrier could provide real-time information in coordinating responses and engage against attacks further from the carrier.
https://www.jhuapl.edu/Content/techdige ... PLteam.pdf
https://defensesystems.com/articles/201 ... c.aspx?m=1
It's worth noting other navies to use this capability multiplier
https://www.navalnews.com/naval-news/20 ... destroyer/
https://thediplomat.com/2018/11/austral ... apability/
https://www.navaltoday.com/2019/05/21/i ... am-firing/

User avatar
SKB
Senior Member
Posts: 7181
Joined: 30 Apr 2015, 18:35
England

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by SKB »


(aamoir) 10th September 2021

abc123
Senior Member
Posts: 2786
Joined: 10 May 2015, 18:15

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by abc123 »

seaspear wrote:
abc123 wrote:
seaspear wrote:Shame they cant afford C.E.C
I thought that the RN doesn't really believe in that?
This is what c.e.c is about it provides information from dispersed sensors that can be collated carrier for instance the carrier escorts that are situated further from the carrier could provide real-time information in coordinating responses and engage against attacks further from the carrier.
https://www.jhuapl.edu/Content/techdige ... PLteam.pdf
https://defensesystems.com/articles/201 ... c.aspx?m=1
It's worth noting other navies to use this capability multiplier
https://www.navalnews.com/naval-news/20 ... destroyer/
https://thediplomat.com/2018/11/austral ... apability/
https://www.navaltoday.com/2019/05/21/i ... am-firing/
I know what the CEC is.
But I read somewhere that the RN supposedly thinks that CEC isn't really useful in real combat, with lots ECM.
Fortune favors brave sir, said Carrot cheerfully.
What's her position about heavily armed, well prepared and overmanned armies?
Oh, noone's ever heard of Fortune favoring them, sir.
According to General Tacticus, it's because they favor themselves…

Lord Jim
Senior Member
Posts: 6241
Joined: 10 Dec 2015, 02:15
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Lord Jim »

What about secure datalinks?

bobp
Senior Member
Posts: 2328
Joined: 06 May 2015, 07:52
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by bobp »

From DSEI ...


Lord Jim
Senior Member
Posts: 6241
Joined: 10 Dec 2015, 02:15
United Kingdom

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by Lord Jim »

That doesn't look like a UK spec T-26. Why are BAe Systems and Babcock embarrassed to show the planned RN configuration vessels in addition to "What ifs", to entice exports?

donald_of_tokyo
Senior Member
Posts: 4181
Joined: 06 May 2015, 13:18
Japan

Re: Type 26 Frigate (City Class) (RN) [News Only]

Post by donald_of_tokyo »

Lord Jim wrote:That doesn't look like a UK spec T-26. Why are BAe Systems and Babcock embarrassed to show the planned RN configuration vessels in addition to "What ifs", to entice exports?
?? The T26 model in the photo of the tweet looks exactly the RN spec T26, for me? The Arrowhead 140 model from Babcock looks like those proposed fro Greek, as well (and may be also to Indonesia?).
